Speed Meets Unmatched Quality
Capacity: 19200 Bricks/shift
A range higher than MAC 1400, this concrete block-making machine is tailored to offer greater speed and productivity without compromising on quality. MAC 1800 is an ideal match for large-scale construction demands.
Technical Specifications
| No. | Property | HP/Cap. |
|---|---|---|
| 1 | Overall Dimension | 9500 x 5500 x 3962 mm |
| 2 | Pallet size | 680 x 550 mm |
| 3 | Cycle Time | 15-30 Sec |
| 4 | Vibration Frequency | 50-90 Hz. |
| 5 | Installed Cap. | 55 HP (41 KW) |
| 6 | Max. Product Height | 200mm |
| 7 | Machine Type | Multipurpose - Automatic |
| 8 | Hydraulic Oil Cap. | 450 Liter |
| 9 | Material Compaction System | Dual Vibration + Pressure Based |
| 10 | Required Shed Area | 4000 sq.ft. |
PRODUCTION CAPACITY
Fly Ash Brick
Size: 230 x 110 x 75 (10)
Pcs/Hour: 2,400
Pcs/Shift: 19,200
Pcs/Hour: 2,400
Pcs/Shift: 19,200

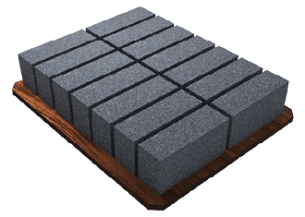

Fly Ash Brick
(ON EDGE)
Size: 230 x 75 x 110 (14)
Pcs/Hour: 3,360
Pcs/Shift: 26,880
Zig-Zag Paver
Size: 225 X 112.5 X 80 (10)
Pcs/Hour: 1,800
Pcs/Shift: 14,400
Pcs/Hour: 1,800
Pcs/Shift: 14,400
Solid Concrete
Size: 400 x 150 x 200 (4)
Pcs/Hour: 840
Pcs/Shift: 6,720
Pcs/Hour: 840
Pcs/Shift: 6,720
Hollow Block
Size: 400 X 200 X 200 (3)
Pcs/Hour: 540
Pcs/Shift: 4,320
Pcs/Hour: 540
Pcs/Shift: 4,320
I Shaped Paver
Size: 200 X 165 X 80 (8)
Pcs/Hour: 1,440
Pcs/Shift: 11,520
Pcs/Hour: 1,440
Pcs/Shift: 11,520
Interlocking Brick
Size: 230 x 220 X 150 (4)
Pcs/Hour: 662
Pcs/Shift: 5,296
Pcs/Hour: 662
Pcs/Shift: 5,296
Retaining Block
Size: 456 X 305 X 203 (2)
Pcs/Hour: 276
Pcs/Shift: 2,208
Pcs/Hour: 276
Pcs/Shift: 2,208
Kerb Stone
Size: 390 X 250 X 150 (2)
Pcs/Hour: 360
Pcs/Shift: 2,880
Pcs/Hour: 360
Pcs/Shift: 2,880
