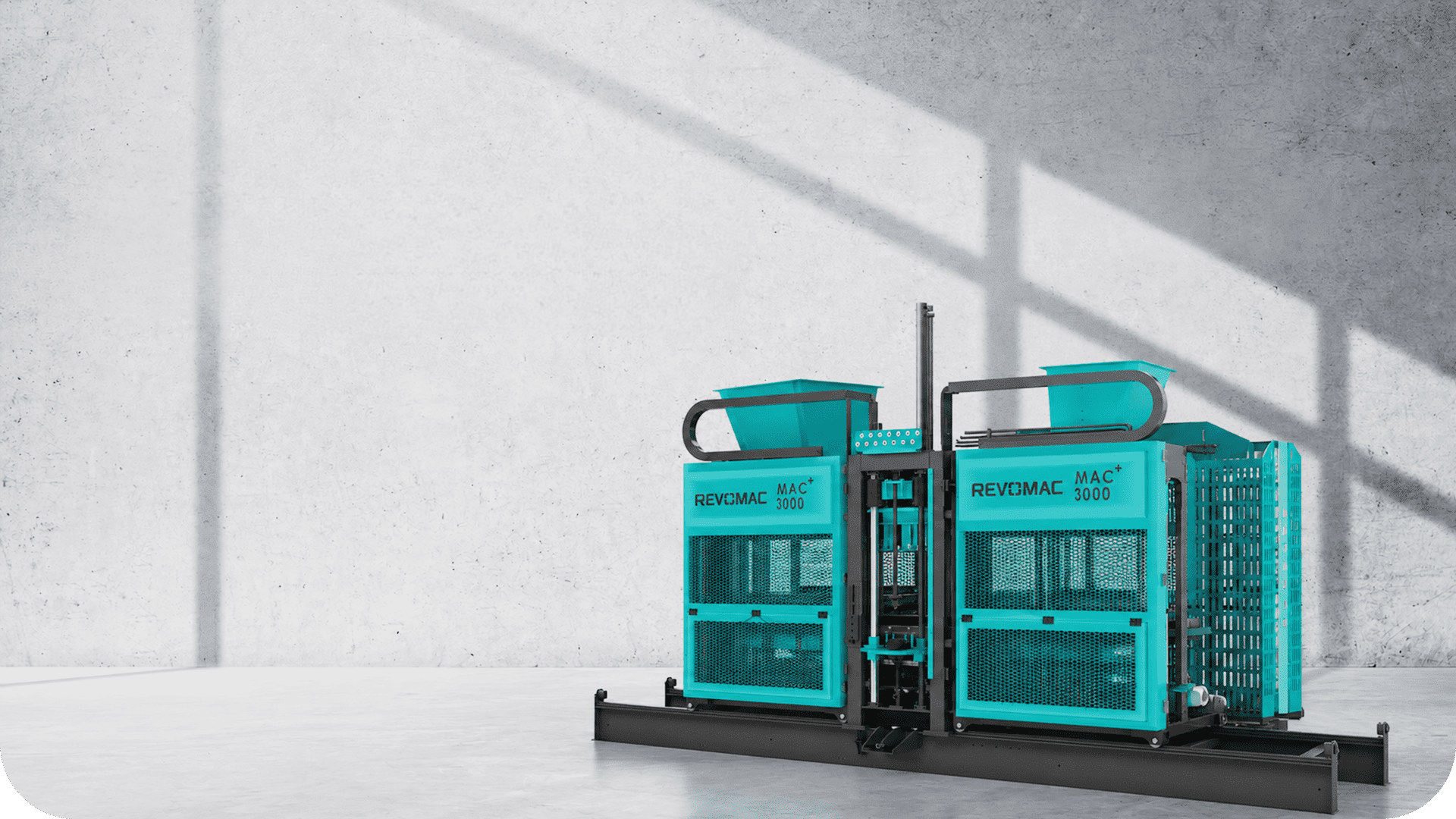

Epitome of Technology & Performance
Capacity: 23040 Bricks/shift
Engineered to be the best in category, this machine optimises the process to suit larger production requirements in short time durations. It is trusted for precision, durability, and efficiency for extensive construction demands.
Technical Specifications
| No. | Property | HP/Cap. |
|---|---|---|
| 1 | Overall Dimension | 25000 x 20000 x 4600 mm |
| 2 | Pallet size | 800 x 580 mm |
| 3 | Cycle Time | 15-30 Sec |
| 4 | Vibration Frequency | 50-90 Hz. |
| 5 | Installed Cap. | 85 HP (63.4 KW) |
| 6 | Max. Product Height | 250mm |
| 7 | Machine Type | Multipurpose-Automatic |
| 8 | Hydraulic Oil Cap. | 450 Liter |
| 9 | Material Compaction System | Dual Vibration + Pressure Based |
| 10 | Required Shed Area | 6000 sq.ft. |
PRODUCTION CAPACITY

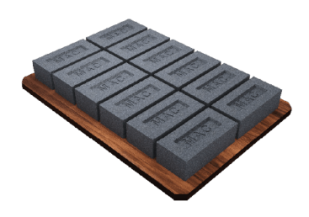

Fly Ash Brick
Size: 230 X 110 X 75 (12)
Pcs/Hour: 2,880
Pcs/Shift: 23,040
Pcs/Hour: 2,880
Pcs/Shift: 23,040
Fly Ash Brick
(ON EDGE)
Size: 230 X 75 X 110 (16)
Pcs/Hour: 3,840
Pcs/Shift: 30,720
Pcs/Hour: 3,840
Pcs/Shift: 30,720

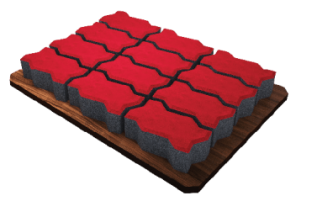

Zig-Zag Paver
Size: 225 X 112.5 X 80 (12)
Pcs/Hour: 2,160
Pcs/Shift: 17,280
Pcs/Hour: 2,160
Pcs/Shift: 17,280
Solid Concrete
Size: 400 X 150 X 200 (4)
Pcs/Hour: 840
Pcs/Shift: 6,720
Hollow Block
Size: 400 X 200 X 200 (3)
Pcs/Hour: 540
Pcs/Shift: 4,320

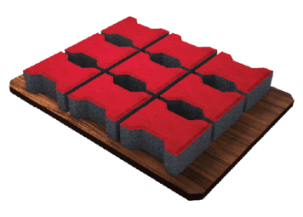

I Shaped Paver
Size: 200 X 165 X 80 (9)
Pcs/Hour: 1,620
Pcs/Shift: 12,960
Pcs/Hour: 1,620
Pcs/Shift: 12,960
Interlocking Brick
Size: 230 x 220 X 150 (6)
Pcs/Hour: 1,000
Pcs/Shift: 8,000
Pcs/Hour: 1,000
Pcs/Shift: 8,000
Retaining Block
Size: 456 X 305 X 203 (2)
Pcs/Hour: 276
Pcs/Shift: 2,208
Pcs/Hour: 276
Pcs/Shift: 2,208
Kerb Stone
Size: 390 X 250 X 150 (2)
Pcs/Hour: 360
Pcs/Shift: 2,880
Pcs/Hour: 360
Pcs/Shift: 2,880
TECHNOLOGY FEATURES
POWERFUL
VIBRATION SYSTEM
The combination of BOTTOM and TOP vibration technology makes concrete products stronger (more than M50 Grade) with minimum use of cement.

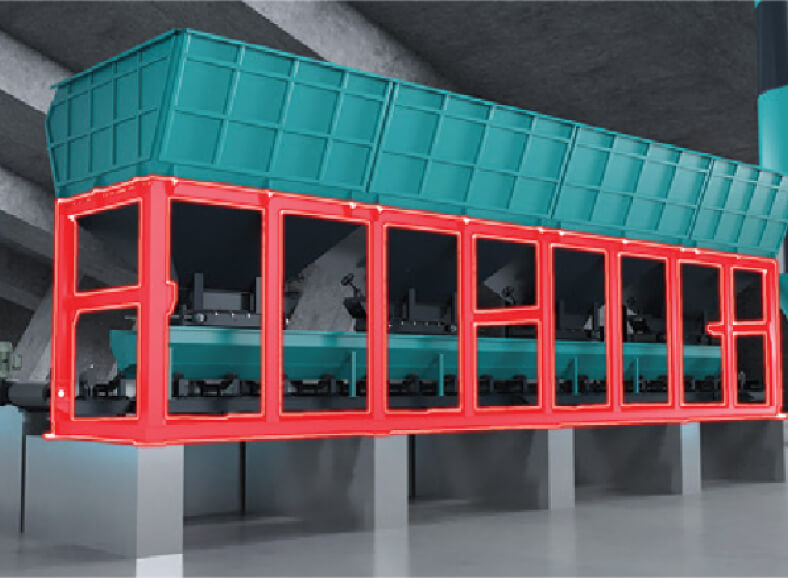

HEAVY – DUTY
STRUCTURE
Structure strength plays a vital role in the construction machines for long service life. The machine structure is designed to withstand continuous vibration and pressure forces at a time.
MAX. PRODUCT
HEIGHT
This machine is capable of making products up to 250 mm in height, thanks to its robust vibration power.
PRODUCT CHANGING
SYSTEM
The fast and easy mold-changing system gives better productivity, time-saving, and maintains product quality.
AUTO TEMPERATURE
CONTROL SYSTEM
Continuous operation of the machine heats the oil and it affects the whole hydraulic system including the cylinder seal, pressure pump and oil viscosity. Our auto temperature control system keeps machine safe.
AUTO HEIGHT
CONTROL SYSTEM
Product height is the most important factor for paving and flooring products. Our machine ensures the accurate height of every product within the civil standards.
HEATING PAD
SYSTEM
Inbuilt heating pad system with punch shoe gives great results during paver and cobblestone production.
MOISTURE CONTROL
SYSTEM
A moisture-controlling system is used to improve the quality and consistency of the final finished product as well as reduce the spoiled batch losses.
REPLACEABLE WEAR
LINER PLATES
Maintenance is a very crucial part of every machine. So, we specially design and care for all maintenance parts of machines like concrete mixers, Mold filler boxes, and face mix feeder with liner plates for easy maintenance.
COMPULSORY MOLD
FILLING SYSTEM
The compressive strength (N/mm2) and accurate product height depend on how the material fills in the Mold whereas Revomac machines ensure for strength and height with the latest Mold-filling technology.
