Experience the Ultimate Power
Capacity: 30720 Bricks/shift

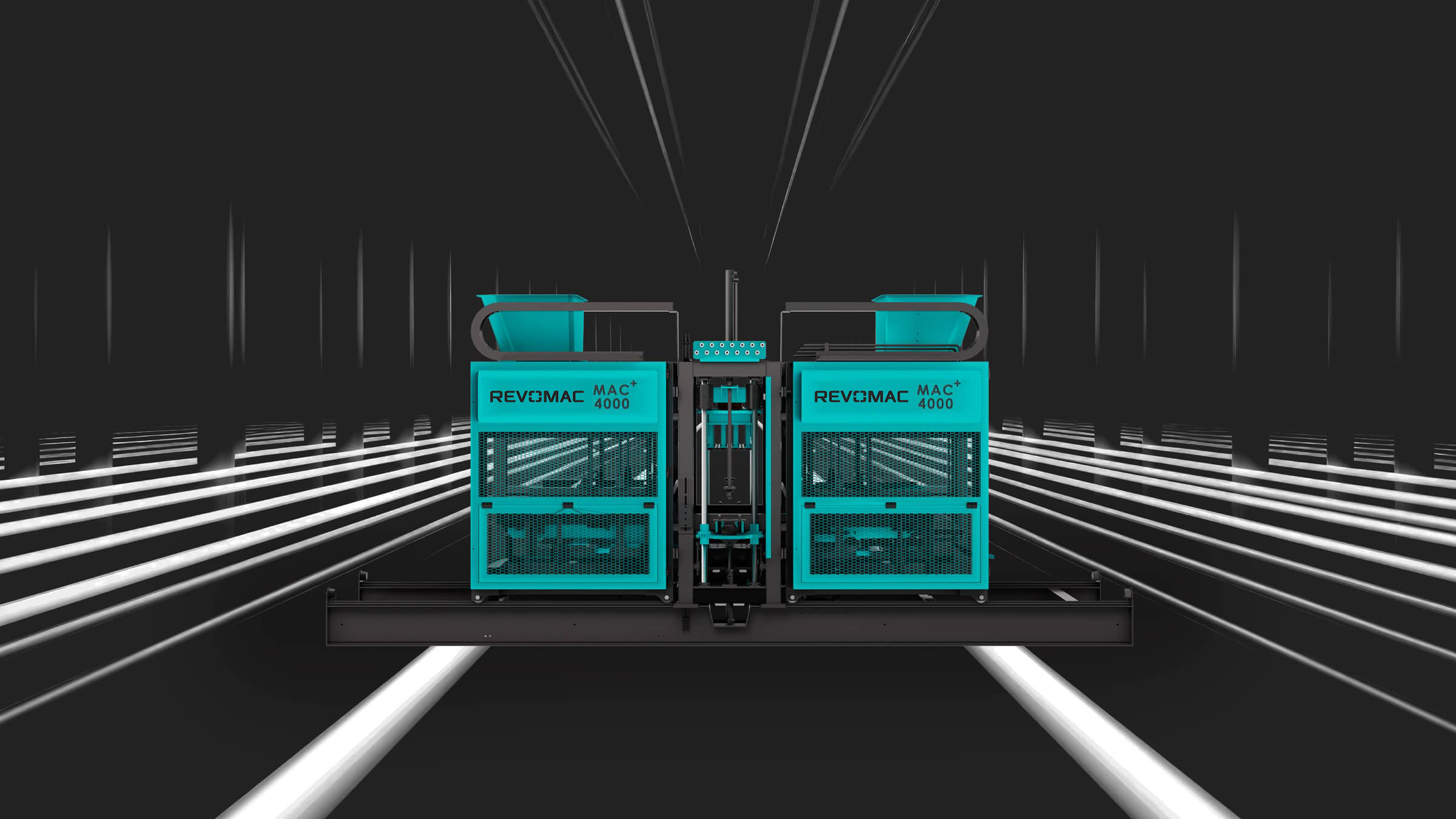

Ace productivity, precision, and quality with this best-in-class concrete block making machine. Powered with high-tech operations, it ensures a performance that is top-notch.
Technical Specifications
| No. | Property | HP/Cap. |
|---|---|---|
| 1 | Overall Dimension | 25000 x 20000 x 4600 mm |
| 2 | Pallet size | 1050 x 580 mm |
| 3 | Cycle Time | 15-30 Sec |
| 4 | Vibration Frequency | 50-90 Hz. |
| 5 | Installed Cap. | 100 HP (74.6 KW) |
| 6 | Max. Product Height | 250mm |
| 7 | Machine Type | Multipurpose-Automatic |
| 8 | Hydraulic Oil Cap. | 450 Liter |
| 9 | Material Compaction System | Dual Vibration + Pressure Based |
| 10 | Required Shed Area | 7500 sq.ft. |
PRODUCTION CAPACITY
Fly Ash Brick
Size: 230 X 110 X 75 (16)
Pcs/Hour: 3,840
Pcs/Shift: 30,720
Pcs/Hour: 3,840
Pcs/Shift: 30,720
Fly Ash Brick
(ON EDGE)
Size: 230 X 75 X 110 (24)
Pcs/Hour: 5,760
Pcs/Shift: 46,080
Pcs/Hour: 5,760
Pcs/Shift: 46,080
Zig-Zag Paver
Size: 225 X 112.5 X 80 (16)
Pcs/Hour: 2,880
Pcs/Shift: 23,040
Pcs/Hour: 2,880
Pcs/Shift: 23,040
Solid Concrete
Size: 400 X 150 X 200 (6)
Pcs/Hour: 1,260
Pcs/Shift: 10,080
Hollow Block
Size: 400 X 200 X 200 (4)
Pcs/Hour: 540
Pcs/Shift: 4,320
Pcs/Hour: 540
Pcs/Shift: 4,320
I Shaped Paver
Size: 200 X 165 X 80 (12)
Pcs/Hour: 2,160
Pcs/Shift: 17,280
Pcs/Hour: 2,160
Pcs/Shift: 17,280
Interlocking Brick
Size: 230 x 220 X 150 (8)
Pcs/Hour: 1,310
Pcs/Shift: 10,480
Retaining Block
Size: 456 X 305 X 203 (3)
Pcs/Hour: 414
Pcs/Shift: 3,312
Kerb Stone
Size: 390 X 250 X 150 (4)
Pcs/Hour: 720
Pcs/Shift: 5,760
Pcs/Hour: 720
Pcs/Shift: 5,760
TECHNOLOGY FEATURES
POWERFUL
VIBRATION SYSTEM
The combination of BOTTOM and TOP vibration technology makes concrete products stronger (more than M50 Grade) with minimum use of cement.
HEAVY – DUTY
STRUCTURE
Structure strength plays a vital role in the construction machines for long service life. The machine structure is designed to withstand continuous vibration and pressure forces at a time.
MAX. PRODUCT
HEIGHT
This machine is capable of making products up to 250 mm in height, thanks to its robust vibration power.
PRODUCT CHANGING
SYSTEM
The fast and easy mold-changing system gives better productivity, time-saving, and maintains product quality.
AUTO TEMPERATURE
CONTROL SYSTEM
Continuous operation of the machine heats the oil and it affects the whole hydraulic system including the cylinder seal, pressure pump and oil viscosity. Our auto temperature control system keeps machine safe.
AUTO HEIGHT
CONTROL SYSTEM
Product height is the most important factor for paving and flooring products. Our machine ensures the accurate height of every product within the civil standards.
HEATING PAD
SYSTEM
Inbuilt heating pad system with punch shoe gives great results during paver and cobblestone production.
MOISTURE CONTROL
SYSTEM
A moisture-controlling system is used to improve the quality and consistency of the final finished product as well as reduce the spoiled batch losses.
REPLACEABLE WEAR
LINER PLATES
Maintenance is a very crucial part of every machine. So, we specially design and care for all maintenance parts of machines like concrete mixers, Mold filler boxes, and face mix feeder with liner plates for easy maintenance.
COMPULSORY MOLD
FILLING SYSTEM
The compressive strength (N/mm2) and accurate product height depend on how the material fills in the Mold whereas Revomac machines ensure for strength and height with the latest Mold-filling technology.
